*EFI Regulator Instruction Sheet*

*EFI-C Regulator Instruction Sheet*

•Unique guided-metering valve assembly provides accurate metering of fuel flow

•Magnafuel EFI Regulators provide the most stable platform for fuel delivery in the performance industry

•Maintains steady fuel fuel flow during times of sudden changes in fuel demands, such as initial launch, gear change and nitrous oxide application

•Designed for use with the MagnaFuel EFI gear pumps

•Regulators available in two different body sizes and different spring combinations to suit your fuel flow at pressure specifications

•Each Regulator has 1/8" NPT gauge port, standard filtered vent fitting or boost reference fitting (1:1 compensation ratio)

•Special fittings and adapters available for most applications

•All MagnaFuel Regulators are hand assembled to the highest quality

•MagnaFuel Regulators are compatible with racing gasoline and alcohol fuels

•Billet body precision CNC-machined from aircraft-quality aluminum and hard anodized for extra long service life

•Completely user-serviceable, with ready to order replacements parts.

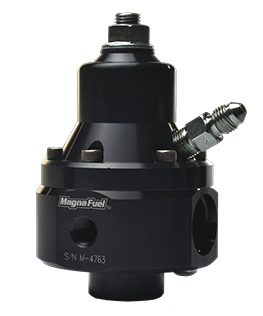

Boost Fitting

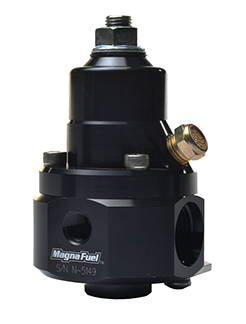

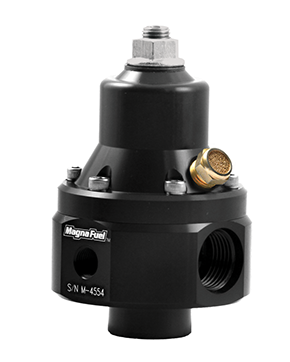

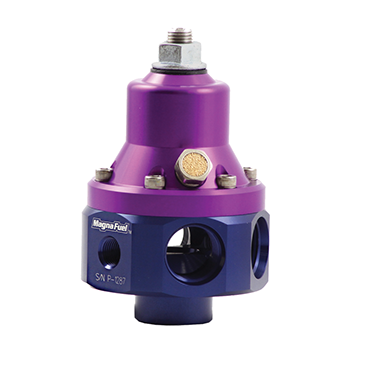

Filter Fitting
